Description

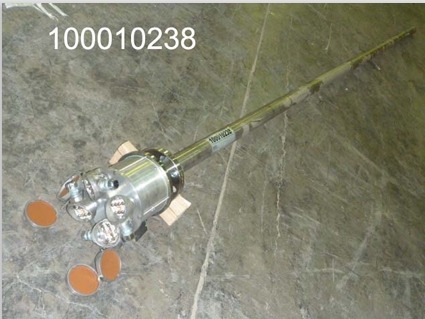

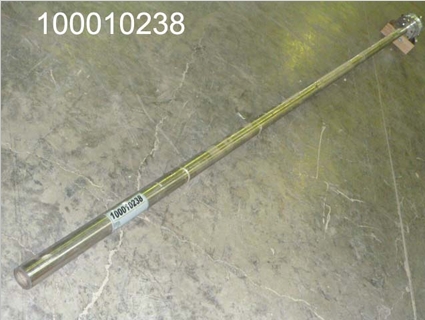

THERMOCOUPLE: TEMPERATURE,K, 200 TO 2300 D
THERMOCOUPLE, TEMPERATURE:
ALLOY COMBINATION: K;
TEMPERATURE RATING: 200 TO 2300 DEG F;
JUNCTION: UNGROUNDED DUAL;
WIRE SIZE: 1 MM;
DESIGN LENGTH: 3 M 720 MM;
SHEATH DIAMETER: 61 MM;
SHEATH MATERIAL: SS321;

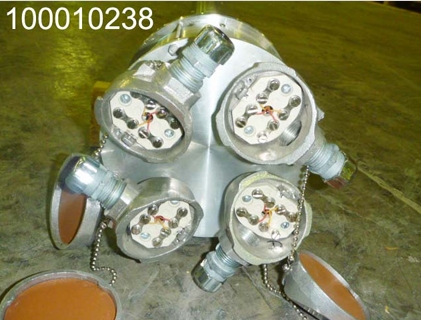

CONNECTION: SCREW TERMINALS;
MOUNT: FLANGE;
STANDARD/SPECIFICATION: BSI BS 4937-4;
ADDITIONAL DATA:
ITEM ADDITIONAL DESCRIPTION: 700 DEG C, DUAL ELEMENT.
MFG: SIEMENS (LM/FM): P/N # 7834D99-001
MFG:LPG INDUSTRIES INC: P/N # 02-1075-001-R1

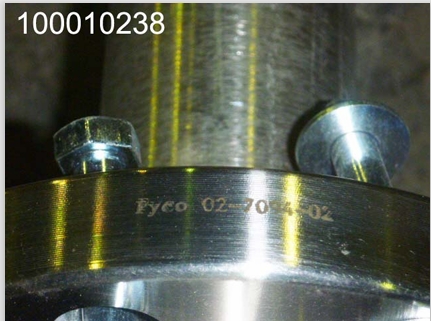

MFG: PYCO INC: P/N # 02-7094-02
MFG: WORLD WIDE GAS TURBINE PRODUCTS INC: P/N # 7834D99-001
